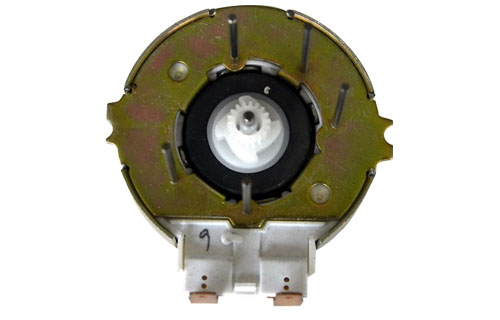

49TYD-P4-1
Introduction：It's mainly used in drain apparatus of washing machines,characterizing large torque,low noise,long service life and stable operation
Voltage,output speed,dimension of output shaft and the length of out going line can be made in accordance with customers requests.
|
Rated Voltage
|
180-240v
|
|
Frequency
|
50-60Hz
|
|
Current
|
≤30mA
|
|
Input power
|
6W
|
|
Output Speed
|
750 RPM
|
|
Starting Voltage
|
≥176V
|
|
Insulation resistance
|
≥100mΩ
|
|
Noise
|
≤40db
|
|
Temperature
|
≤60K
|
|
Insulation Class
|
E
|
|
Out Torque
|
1500v AC/1MIN
|
